3D-printed caps and tools for Bruker rotors

Useful stuff
1

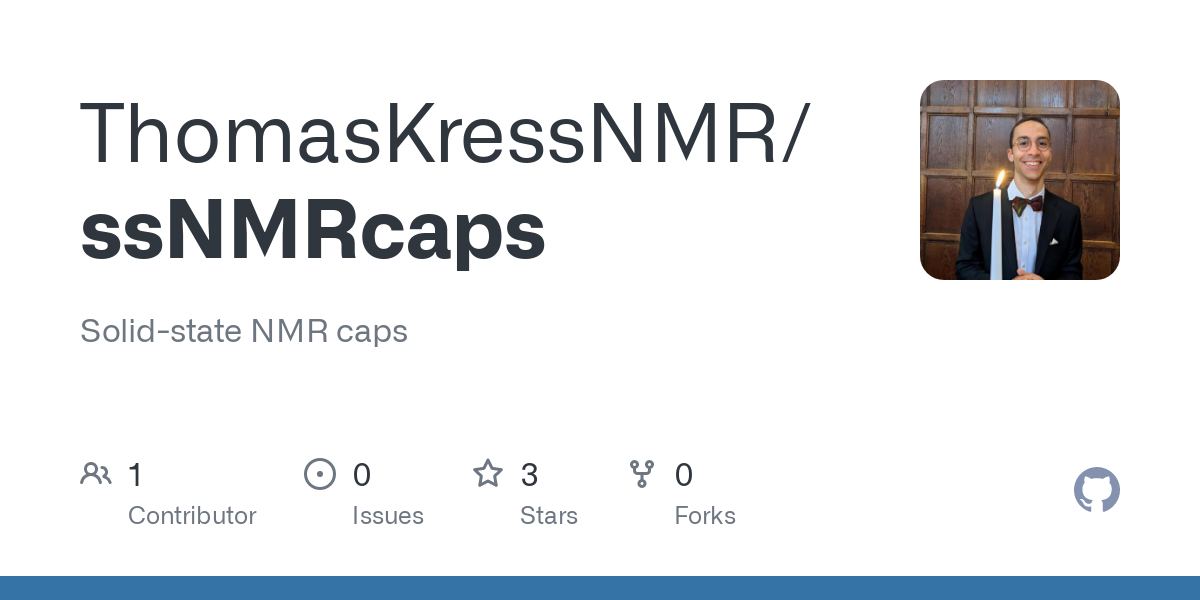

3D-printed caps for Bruker rotors, from 1.3 mm to 4 mm, made in Fusion 360

  • 4mm caps, tested up to 12.5kHz
  • 3.2mm caps, thin wall 2.6mm ID or thick wall 2.2mm ID, tested up to 18kHz
  • 2.5mm top and bottom caps, (thick or thin wall), tested up to 25kHz
  • 1.3mm, top and bottom, tested up to 50kHz

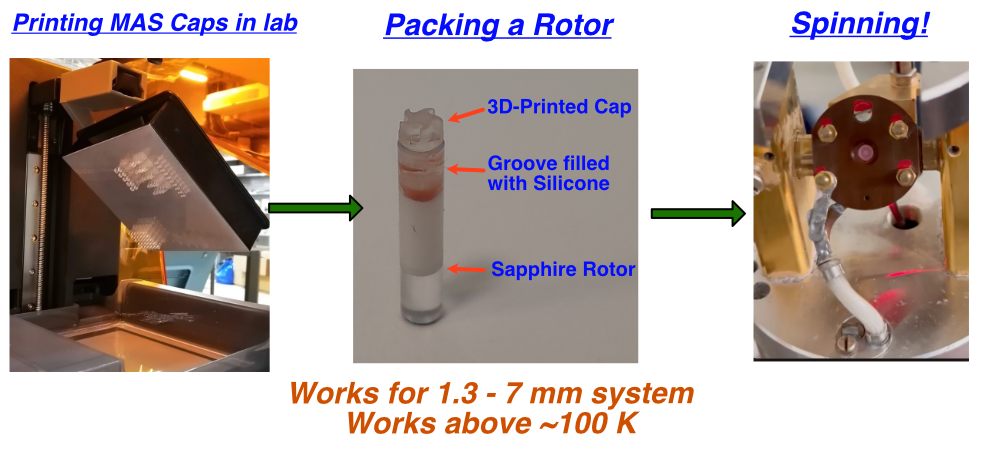

In-house fabrication of 1.3 to 7 mm MAS drive caps using desktop 3D printers.
Inspired by Amerein, C., Banerjee, U., Pang, Z., Lu, W., Pimenta, V., Tan, K.O., 2023. DOI:10.1016/j.jmr.2023.107391

source: x.com

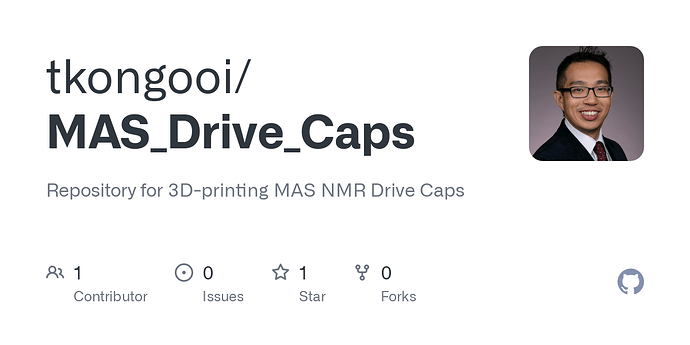

GitHub of Kong Ooi Tan with Autodesk Inventor files
